PUSIRA

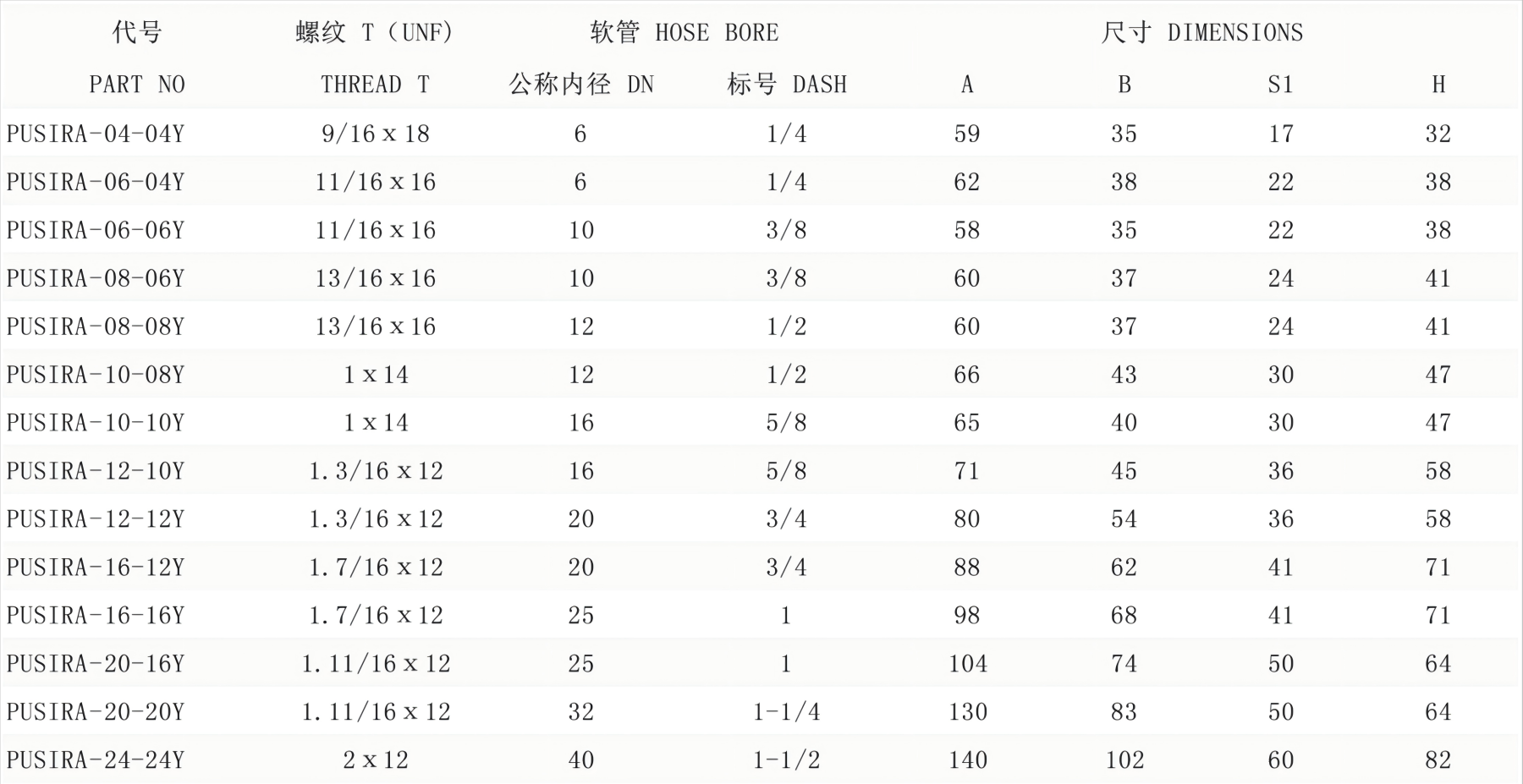

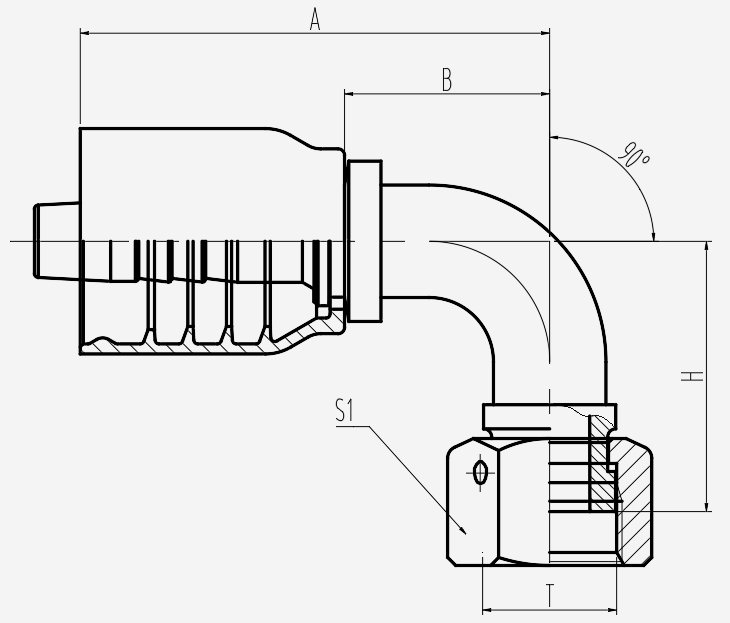

90°美制ORFS内螺纹平面
90°ORFS FEMALE FLAT SEAT
ISO 8434-3--SAE J1453-
0.000.00
-
PUSIRA
90°美制ORFS内螺纹平面
90°ORFS FEMALE FLAT SEAT
ISO 8434-3--SAE J1453
24°FORM结构扣压芯头列表 | ||||
序号 | 轻系列穿钢丝 | 重系列穿钢丝 | 轻系列套螺母 | 重系列套螺母 |
1 | 24SFL06W | 24SFS06W | 24SFL06T | 24SFS06T |
2 | 24SFL08W | 24SFS08W | 24SFL08T | 24SFS08T |
3 | 24SFL10W | 24SFS10W | 24SFL10T | 24SFS10T |
4 | 24SFL12W | 24SFS12W | 24SFL12T | 24SFS12T |
5 | 24SFL15W | 24SFS14W | 24SFL15T | 24SFS14T |
6 | 24SFL18W | 24SFS16W | 24SFL18T | 24SFS16T |
7 | 24SFL22W | 24SFS20W | 24SFL22T | 24SFS20T |
8 | 24SFL28W | 24SFS25W | 24SFL28T | 24SFS25T |
9 | 24SFL35W | 24SFS30W | 24SFL35T | 24SFS30T |
10 | 24SFL42W | 24SFS38W | 24SFL42T | 24SFS38T |
24°常规结构扣压芯头列表 | ||||
序号 | 轻系列穿钢丝 | 重系列穿钢丝 | 轻系列套螺母 | 重系列套螺母 |
1 | 24SHL06W | 24SHS06W | 24SHL06T | 24SHS06T |
2 | 24SHL08W | 24SHS08W | 24SHL08T | 24SHS08T |
3 | 24SHL10W | 24SHS10W | 24SHL10T | 24SHS10T |
4 | 24SHL12W | 24SHS12W | 24SHL12T | 24SHS12T |
5 | 24SHL15W | 24SHS14W | 24SHL15T | 24SHS14T |
6 | 24SHL18W | 24SHS16W | 24SHL18T | 24SHS16T |
7 | 24SHL22W | 24SHS20W | 24SHL22T | 24SHS20T |
8 | 24SHL28W | 24SHS25W | 24SHL28T | 24SHS25T |
9 | 24SHL35W | 24SHS30W | 24SHL35T | 24SHS30T |
10 | 24SHL42W | 24SHS38W | 24SHL42T | 24SHS38T |
扣压芯尾 | ||||
序号 | 1SN/2SN | 4SP | 4SH | SAE100 R15 |
1 | SA04 | / | / | / |
2 | SA05 | / | / | / |
3 | SA06 | SA06 | / | / |
4 | SA08 | SA08 | / | / |
5 | SA10 | SA10 | / | / |
6 | SA12 | SA12 | SC12 | SD12 |
7 | SA16 | SA16 | SC16 | SD16 |
8 | SA20 | SA20 | SC20 | SD20 |
9 | SA24 | SB24 | SC24 | SD24 |
10 | SA32 | SB32 | SC32 | / |
43系列 | 70/71系列 | 73/78系列 | 79系列 | |
螺母 | ||
序号 | 穿钢丝 | 套螺母 |
1 | 24SLM12X1.5W | 24SLM12X1.5T |
2 | 24SLM14X1.5W | 24SLM14X1.5T |
3 | 24SLM16X1.5W | 24SLM16X1.5T |
4 | 24SLM18X1.5W | 24SLM18X1.5T |
5 | 24SLM20X1.5W | 24SLM20X1.5T |
6 | 24SLM22X1.5W | 24SLM22X1.5T |
7 | 24SLM24X1.5W | 24SLM24X1.5T |
8 | 24SLM26X1.5W | 24SLM26X1.5T |
9 | 24SLM30X2W | 24SLM30X2T |
10 | 24SLM36X2W | 24SLM36X2T |
11 | 24SLM42X2W | 24SLM42X2T |
12 | 24SLM45X2W | 24SLM45X2T |
13 | 24SLM52X2W | 24SLM52X2T |
套筒 | ||||
序号 | 1SN/2SN | 4SP | 4SH | SAE100 R15 |
1 | STA04Y | / | / | / |
2 | STA05Y | / | / | / |
3 | STA06Y | STB06Y | / | / |
4 | STA08Y | STB08Y | / | / |
5 | STA10Y | STB10Y | / | / |
6 | STA12Y | STB12Y | STC12Y | STD12Y |
7 | STA16Y | STB16Y | STC16Y | STD16Y |
8 | STA20Y | STB20Y | STC20Y | STD20Y |
9 | STA24Y | STB24Y | STC24Y | STD24Y |
10 | STA32Y | STB32Y | STC32Y | / |
10043系列 | 10070/10071系列 | 10073/10078系列 | 10079系列 | |
FORM密封圈 | ||
序号 | 轻系列 | 重系列 |
1 | SFO-L/S6 | SFO-L/S6 |
2 | SFO-L/S8 | SFO-L/S8 |
3 | SFO-L/S10 | SFO-L/S10 |
4 | SFO-L/S12 | SFO-L/S12 |
5 | SFO-L15 | SFO-S14 |
6 | SFO-L18 | SFO-S16 |
7 | SFO-L22 | SFO-S20 |
8 | SFO-L28 | SFO-S25 |
9 | SFO-L35 | SFO-S30 |
10 | SFO-L42 | SFO-S38 |
芯杆号对照 | |||
1SN/2SN | |||
轻系列 | |||
SPT号 | park号（有图） | eton号 | 最小棒料直径 |
24SFL06W/SA04/L | KCA31-6-4 | 20411-12-04 | φ13 |
24SFL08W/SA04/L | KCA31-8-4 | 20411-14-04 | φ13 |
24SFL08W/SA06/L | KCA31-8-6 | 20411-14-06 | φ19 |
24SFL10W/SA08/L | KCA31-10-8 | 20411-16-08 | φ21 |
24SFL12W/SA06/L | KCA31-12-6 | 20411-18-06 | φ19 |
24SFL12W/SA08/L | KCA31-12-8 | 20411-18-08 | φ21 |
24SFL15T/SA06/L | KCA31-15-6 | 20411-22-06 | φ22 |
24SFL15W/SA08/L | KCA31-15-8 | 20411-22-08 | φ23 |
24SFL15W/SA10/L | KCA31-15-10 | 20411-22-10 | φ25 |
24SFL18T/SA08/L | KCA31-18-8 | 20411-26-08 | φ26 |
24SFL18W/SA10/L | KCA31-18-10 | 20411-26-10 | φ25 |
24SFL18W/SA12/L | KCA31-18-12 | 20411-26-12 | φ27 |
24SFL22T/SA08/L | KCA31-22-8 | 20411-30-08 | φ29 |
24SFL22T/SA10/L | KCA31-22-10 | 20411-30-10 | φ29 |
24SFL22T/SA12/L | KCA31-22-12 | 20411-30-12 | φ29 |
24SFL28T/SA12/L | KCA31-28-12 | 20411-36-12 | φ35 |
24SFL28W/SA16/L | KCA31-28-16 | 20411-36-16 | φ34 |
24SFL28W/SA20/L | KCA31-28-20 | 20411-36-20 | φ46 |
24SFL35T/SA16/L | KCA31-35-16 | 20411-45-16 | φ44 |
24SFL35W/SA20/L | KCA31-35-20 | 20411-45-20 | φ46 |
24SFL35W/SA24/L | KCA31-35-24 | 20411-45-24 | φ51 |
24SFL42T/SA20/L | KCA31-42-20 | 20411-52-20 | φ51 |
24SFL42W/SA24/L | KCA31-42-24 | 20411-52-24 | φ51 |
24SFL42W/SA32/L | KCA31-42-32 | 20411-52-32 | φ61 |
重系列 | |||
SPT号 | park号 | eton号 | 最小棒料直径 |
24SFS06W/SA04/L | KC931-6-4 | 20511-14-04 | φ13 |
24SFS08T/SA04/L | KC931-8-4 | 20511-16-04 | φ16 |
24SFS08W/SA06/L | KC931-8-6 | 20511-16-06 | φ18 |
24SFS10T/SA04/L | KC931-10-4 | 20511-18-04 | φ18 |
24SFS10W/SA06/L | KC931-10-6 | 20511-18-06 | φ19 |
24SFS12T/SA06/L | KC931-12-6 | 20511-20-06 | φ20 |
24SFS12W/SA08/L | KC931-12-8 | 20511-20-08 | φ21 |
24SFS12W/SA10/L | KC931-12-10 | 20511-20-10 | φ26 |
24SFS12W/SA16/L | KC931-12-16 | 20511-20-16 | φ36 |
24SFS14T/SA06/L | KC931-14-6 | 20511-22-06 | φ22 |
24SFS14W/SA08/L | KC931-14-8 | 20511-22-08 | φ21 |
24SFS16T/SA06/L | KC931-16-6 | 20511-24-06 | φ24 |
24SFS16T/SA08/L | KC931-16-8 | 20511-24-08 | φ24 |
24SFS16W/SA10/L | KC931-16-10 | 20511-24-10 | φ24 |
24SFS16W/SA12/L | KC931-16-12 | 20511-24-12 | φ26 |
24SFS20T/SA08/L | KC931-20-8 | 20511-30-08 | φ29 |
24SFS20T/SA10/L | KC931-20-10 | 20511-30-10 | φ29 |
24SFS20T/SA12/L | KC931-20-12 | 20511-30-12 | φ29 |
24SFS20W/SA16/L | KC931-20-16 | 20511-30-16 | φ36 |
24SFS25T/SA10/L | KC931-25-10 | 20511-36-10 | φ35 |
24SFS25T/SA12/L | KC931-25-12 | 20511-36-12 | φ35 |
24SFS25W/SA16/L | KC931-25-16 | 20511-36-16 | φ34 |
24SFS25W/SA20/L | KC931-25-20 | 20511-36-20 | φ46 |
24SFS30T/SA08/L | KC931-30-8 | 20511-42-08 | φ41 |
24SFS30T/SA12/L | KC931-30-12 | 20511-42-12 | φ41 |
24SFS30T/SA16/L | KC931-30-16 | 20511-42-16 | φ41 |
24SFS30W/SA20/L | KC931-30-20 | 20511-42-20 | φ46 |
24SFS38T/SA12/L | KC931-38-12 | 20511-52-12 | φ51 |
24SFS38T/SA16/L | KC931-38-16 | 20511-52-16 | φ51 |
24SFS38T/SA20/L | KC931-38-20 | 20511-52-20 | φ51 |
24SFS38W/SA24/L | KC931-38-24 | 20511-52-24 | φ51 |
4SP | |||
轻系列 | |||
SPT号 | park号 | eton号 | 最小棒料直径 |
24SFL42W/SB24/L | KCA71-42-24 | 20412-52-24 | φ51 |
24SFL28W/SB32/L | KCA71-28-32 | 20412-28-32 | φ61 |
重系列 | |||
SPT号 | park号 | eton号 | 最小棒料直径 |
24SFS38W/SB24/L | KC971-38-24 | 20512-52-24 | φ51 |
4SH | |||
轻系列 | |||
SPT号 | park号 | eton号 | 最小棒料直径 |
24SFL18W/SC12/L | KCA78-18-12 | 20412-26-12 | φ34 |
24SFL22W/SC12/L | KCA78-22-12 | 20412-30-12 | φ34 |
24SFL28T/SC12/L | KCA78-28-12 | 20412-36-12 | φ35 |
24SFL28W/SC16/L | KCA78-28-16 | 20412-36-16 | φ36 |
24SFL28W/SC20/L | KCA78-28-20 | 20412-36-20 | φ46 |
24SFL35T/SC16/L | KCA78-35-16 | 20412-45-16 | φ44 |
24SFL35W/SC20/L | KCA78-35-20 | 20412-45-20 | φ46 |
24SFL42T/SC20/L | KCA78-42-20 | 20412-52-20 | φ51 |
24SFL42W/SC24/L | KCA78-42-24 | 20412-52-24 | φ51 |
24SFL42W/SC32/L | KCA78-42-32 | 20412-52-32 | φ66 |
重系列 | |||
SPT号 | park号 | eton号 | 最小棒料直径 |
24SFS20W/SC12/L | KC978-20-12 | 20512-30-12 | φ34 |
24SFS20W/SC16/L | KC978-20-16 | 20512-30-16 | φ36 |
24SFS25T/SC12/L | KC978-25-12 | 20512-36-12 | φ35 |
24SFS25W/SC16/L | KC978-25-16 | 20512-36-16 | φ36 |
24SFS25W/SC20/L | KC978-25-20 | 20512-36-20 | φ46 |
24SFS30T/SC12/L | KC978-30-12 | 20512-42-12 | φ41 |
24SFS30T/SC16/L | KC978-30-16 | 20512-42-16 | φ41 |
24SFS30W/SC20/L | KC978-30-20 | 20512-42-20 | φ46 |
24SFS38T/SC16/L | KC978-38-16 | 20512-52-16 | φ51 |
24SFS38T/SC20/L | KC978-38-20 | 20512-52-20 | φ51 |
24SFS38W/SC24/L | KC978-38-24 | 20512-52-24 | φ51 |
24SFS38W/SC32/L | KC978-38-32 | 20512-52-32 | φ66 |
SAE100 R15 | |||
重系列 | |||
SPT号 | park号 | eton号 | 最小棒料直径 |
24SFS20W/SD12/L | KC979-20-12 | 20513-30-12 | φ33 |
24SFS20W/SD16/L | KC979-20-16 | 20513-30-16 | φ36 |
24SFS25T/SD12/L | KC979-25-12 | 20513-36-12 | φ35 |
24SFS25W/SD16/L | KC979-25-16 | 20513-36-16 | φ36 |
24SFS30T/SD16/L | KC979-30-16 | 20513-42-16 | φ41 |
24SFS30W/SD20/L | KC979-30-20 | 20513-42-20 | φ46 |
24SFS38T/SD20/L | KC979-38-20 | 20513-52-20 | φ51 |
24SFS38W/SD24/L | KC979-38-24 | 20513-52-24 | φ51 |
扣压接头BOM表 | |||||
1SN/2SN | |||||
轻系列 | |||||
扣压接头型号 | 芯杆号 | 配套螺母 | 配套套筒 | 总成对应park号 | 总成对应eton号 |
24SFLLA-06-04WY | 24SFL06W/SA04/L | 24SLM12X1.5W | STA04Y | 1CA43-6-4 | 20411-12-04 |
24SFLLA-08-04WY | 24SFL08W/SA04/L | 24SLM14X1.5W | STA04Y | 1CA43-8-4 | 20411-14-04 |
24SFLLA-08-06WY | 24SFL08W/SA06/L | 24SLM14X1.5W | STA06Y | 1CA43-8-6 | 20411-14-06 |
24SFLLA-10-08WY | 24SFL10W/SA08/L | 24SLM16X1.5W | STA08Y | 1CA43-10-8 | 20411-16-08 |
24SFLLA-12-06WY | 24SFL12W/SA06/L | 24SLM18X1.5W | STA06Y | 1CA43-12-6 | 20411-18-06 |
24SFLLA-12-08WY | 24SFL12W/SA08/L | 24SLM18X1.5W | STA08Y | 1CA43-12-8 | 20411-18-08 |
24SFLLA-15-06TY | 24SFL15T/SA06/L | 24SLM22X1.5T | STA06Y | 1CA43-15-6 | 20411-22-06 |
24SFLLA-15-08WY | 24SFL15W/SA08/L | 24SLM22X1.5W | STA08Y | 1CA43-15-8 | 20411-22-08 |
24SFLLA-15-10WY | 24SFL15W/SA10/L | 24SLM22X1.5W | STA10Y | 1CA43-15-10 | 20411-22-10 |
24SFLLA-18-08TY | 24SFL18T/SA08/L | 24SLM26X1.5T | STA08Y | 1CA43-18-8 | 20411-26-08 |
24SFLLA-18-10WY | 24SFL18W/SA10/L | 24SLM26X1.5W | STA10Y | 1CA43-18-10 | 20411-26-10 |
24SFLLA-18-12WY | 24SFL18W/SA12/L | 24SLM26X1.5W | STA12Y | 1CA43-18-12 | 20411-26-12 |
24SFLLA-22-08TY | 24SFL22T/SA08/L | 24SLM30X2T | STA08Y | 1CA43-22-8 | 20411-30-08 |
24SFLLA-22-10TY | 24SFL22T/SA10/L | 24SLM30X2T | STA10Y | 1CA43-22-10 | 20411-30-10 |
24SFLLA-22-12TY | 24SFL22T/SA12/L | 24SLM30X2T | STA12Y | 1CA43-22-12 | 20411-30-12 |
24SFLLA-28-12TY | 24SFL28T/SA12/L | 24SLM36X2T | STA12Y | 1CA43-28-12 | 20411-36-12 |
24SFLLA-28-16WY | 24SFL28W/SA16/L | 24SLM36X2W | STA16Y | 1CA43-28-16 | 20411-36-16 |
24SFLLA-28-20WY | 24SFL28W/SA20/L | 24SLM36X2W | STA20Y | 1CA43-28-20 | 20411-36-20 |
24SFLLA-35-16TY | 24SFL35T/SA16/L | 24SLM45X2T | STA16Y | 1CA43-35-16 | 20411-45-16 |
24SFLLA-35-20WY | 24SFL35W/SA20/L | 24SLM45X2W | STA20Y | 1CA43-35-20 | 20411-45-20 |
24SFLLA-35-24WY | 24SFL35W/SA24/L | 24SLM45X2W | STA24Y | 1CA43-35-24 | 20411-45-24 |
24SFLLA-42-20TY | 24SFL42T/SA20/L | 24SLM52X2T | STA20Y | 1CA43-42-20 | 20411-52-20 |
24SFLLA-42-24WY | 24SFL42W/SA24/L | 24SLM52X2W | STA24Y | 1CA43-42-24 | 20411-52-24 |
24SFLLA-42-32WY | 24SFL42W/SA32/L | 24SLM52X2W | STA32Y | 1CA43-42-32 | 20411-52-32 |
重系列 | |||||
扣压接头型号 | 芯杆号 | 配套螺母 | 配套套筒 | 总成对应park号 | 总成对应eton号 |
24SFSLA-06-04WY | 24SFS06W/SA04/L | 24SLM14X1.5W | STA04Y | 1C943-6-4 | 20511-14-04 |
24SFSLA-08-04TY | 24SFS08T/SA04/L | 24SLM16X1.5T | STA04Y | 1C943-8-4 | 20511-16-04 |
24SFSLA-08-06WY | 24SFS08W/SA06/L | 24SLM16X1.5W | STA06Y | 1C943-8-6 | 20511-16-06 |
24SFSLA-10-04TY | 24SFS10T/SA04/L | 24SLM18X1.5T | STA04Y | 1C943-10-4 | 20511-18-04 |
24SFSLA-10-06WY | 24SFS10W/SA06/L | 24SLM18X1.5W | STA06Y | 1C943-10-6 | 20511-18-06 |
24SFSLA-12-06TY | 24SFS12T/SA06/L | 24SLM20X1.5T | STA06Y | 1C943-12-6 | 20511-20-06 |
24SFSLA-12-08WY | 24SFS12W/SA08/L | 24SLM20X1.5W | STA08Y | 1C943-12-8 | 20511-20-08 |
24SFSLA-12-10WY | 24SFS12W/SA10/L | 24SLM20X1.5W | STA10Y | 1C943-12-10 | 20511-20-10 |
24SFSLA-12-16WY | 24SFS12W/SA16/L | 24SLM20X1.5W | STA16Y | 1C943-12-16 | 20511-20-16 |
24SFSLA-14-06TY | 24SFS14T/SA06/L | 24SLM22X1.5T | STA06Y | 1C943-14-6 | 20511-22-06 |
24SFSLA-14-08WY | 24SFS14W/SA08/L | 24SLM22X1.5W | STA08Y | 1C943-14-8 | 20511-22-08 |
24SFSLA-16-06TY | 24SFS16T/SA06/L | 24SLM24X1.5T | STA06Y | 1C943-16-6 | 20511-24-06 |
24SFSLA-16-08TY | 24SFS16T/SA08/L | 24SLM24X1.5T | STA08Y | 1C943-16-8 | 20511-24-08 |
24SFSLA-16-10WY | 24SFS16W/SA10/L | 24SLM24X1.5W | STA10Y | 1C943-16-10 | 20511-24-10 |
24SFSLA-16-12WY | 24SFS16W/SA12/L | 24SLM24X1.5W | STA12Y | 1C943-16-12 | 20511-24-12 |
24SFSLA-20-08TY | 24SFS20T/SA08/L | 24SLM30X2T | STA08Y | 1C943-20-8 | 20511-30-08 |
24SFSLA-20-10TY | 24SFS20T/SA10/L | 24SLM30X2T | STA10Y | 1C943-20-10 | 20511-30-10 |
24SFSLA-20-12TY | 24SFS20T/SA12/L | 24SLM30X2T | STA12Y | 1C943-20-12 | 20511-30-12 |
24SFSLA-20-16WY | 24SFS20W/SA16/L | 24SLM30X2W | STA16Y | 1C943-20-16 | 20511-30-16 |
24SFSLA-25-10TY | 24SFS25T/SA10/L | 24SLM36X2T | STA10Y | 1C943-25-10 | 20511-36-10 |
24SFSLA-25-12TY | 24SFS25T/SA12/L | 24SLM36X2T | STA12Y | 1C943-25-12 | 20511-36-12 |
24SFSLA-25-16WY | 24SFS25W/SA16/L | 24SLM36X2W | STA16Y | 1C943-25-16 | 20511-36-16 |
24SFSLA-25-20WY | 24SFS25W/SA20/L | 24SLM36X2W | STA20Y | 1C943-25-20 | 20511-36-20 |
24SFSLA-30-08TY | 24SFS30T/SA08/L | 24SLM42X2T | STA08Y | 1C943-30-8 | 20511-42-08 |
24SFSLA-30-12TY | 24SFS30T/SA12/L | 24SLM42X2T | STA12Y | 1C943-30-12 | 20511-42-12 |
24SFSLA-30-16TY | 24SFS30T/SA16/L | 24SLM42X2T | STA16Y | 1C943-30-16 | 20511-42-16 |
24SFSLA-30-20WY | 24SFS30W/SA20/L | 24SLM42X2W | STA20Y | 1C943-30-20 | 20511-42-20 |
24SFSLA-38-12TY | 24SFS38T/SA12/L | 24SLM52X2T | STA12Y | 1C943-38-12 | 20511-52-12 |
24SFSLA-38-16TY | 24SFS38T/SA16/L | 24SLM52X2T | STA16Y | 1C943-38-16 | 20511-52-16 |
24SFSLA-38-20TY | 24SFS38T/SA20/L | 24SLM52X2T | STA20Y | 1C943-38-20 | 20511-52-20 |
24SFSLA-38-24WY | 24SFS38W/SA24/L | 24SLM52X2W | STA24Y | 1C943-38-24 | 20511-52-24 |
4SP | |||||
轻系列 | |||||
扣压接头型号 | 芯杆号 | 配套螺母 | 配套套筒 | 总成对应park号 | 总成对应eton号 |
24SFLLB-42-24WY | 24SFL42W/SB24/L | 24SLM52X2W | STB24Y | 1CA71-42-24 | 20412-52-24 |
24SFLLB-28-32WY | 24SFL28W/SB32/L | 24SLM36X2W | STB32Y | 1CA71-28-32 | 20412-28-32 |
重系列 | |||||
扣压接头型号 | 芯杆号 | 配套螺母 | 配套套筒 | 总成对应park号 | 总成对应eton号 |
24SFSLB-38-24WY | 24SFS38W/SB24/L | 24SLM52X2W | STB24Y | 1C971-38-24 | 20512-52-24 |
4SH | |||||
轻系列 | |||||
扣压接头型号 | 芯杆号 | 配套螺母 | 配套套筒 | 总成对应park号 | 总成对应eton号 |
24SFLLC-18-12WY | 24SFL18W/SC12/L | 24SLM26X1.5W | STC12Y | 1CA78-18-12 | 20412-26-12 |
24SFLLC-22-12WY | 24SFL22W/SC12/L | 24SLM30X2W | STC12Y | 1CA78-22-12 | 20412-30-12 |
24SFLLC-28-12TY | 24SFL28T/SC12/L | 24SLM36X2T | STC12Y | 1CA78-28-12 | 20412-36-12 |
24SFLLC-28-16WY | 24SFL28W/SC16/L | 24SLM36X2W | STC16Y | 1CA78-28-16 | 20412-36-16 |
24SFLLC-28-20WY | 24SFL28W/SC20/L | 24SLM36X2W | STC20Y | 1CA78-28-20 | 20412-36-20 |
24SFLLC-35-16TY | 24SFL35T/SC16/L | 24SLM45X2T | STC16Y | 1CA78-35-16 | 20412-45-16 |
24SFLLC-35-20WY | 24SFL35W/SC20/L | 24SLM45X2W | STC20Y | 1CA78-35-20 | 20412-45-20 |
24SFLLC-42-20TY | 24SFL42T/SC20/L | 24SLM52X2T | STC20Y | 1CA78-42-20 | 20412-52-20 |
24SFLLC-42-24WY | 24SFL42W/SC24/L | 24SLM52X2W | STC24Y | 1CA78-42-24 | 20412-52-24 |
24SFLLC-42-32WY | 24SFL42W/SC32/L | 24SLM52X2W | STC32Y | 1CA78-42-32 | 20412-52-32 |
重系列 | |||||
扣压接头型号 | 芯杆号 | 配套螺母 | 配套套筒 | 总成对应park号 | 总成对应eton号 |
24SFSLC-20-12WY | 24SFS20W/SC12/L | 24SLM30X2W | STC12Y | 1C978-20-12 | 20512-30-12 |
24SFSLC-20-16WY | 24SFS20W/SC16/L | 24SLM30X2W | STC16Y | 1C978-20-16 | 20512-30-16 |
24SFSLC-25-12TY | 24SFS25T/SC12/L | 24SLM36X2T | STC12Y | 1C978-25-12 | 20512-36-12 |
24SFSLC-25-16WY | 24SFS25W/SC16/L | 24SLM36X2W | STC16Y | 1C978-25-16 | 20512-36-16 |
24SFSLC-25-20WY | 24SFS25W/SC20/L | 24SLM36X2W | STC20Y | 1C978-25-20 | 20512-36-20 |
24SFSLC-30-12TY | 24SFS30T/SC12/L | 24SLM42X2T | STC12Y | 1C978-30-12 | 20512-42-12 |
24SFSLC-30-16TY | 24SFS30T/SC16/L | 24SLM42X2T | STC16Y | 1C978-30-16 | 20512-42-16 |
24SFSLC-30-20WY | 24SFS30W/SC20/L | 24SLM42X2W | STC20Y | 1C978-30-20 | 20512-42-20 |
24SFSLC-38-16TY | 24SFS38T/SC16/L | 24SLM52X2T | STC16Y | 1C978-38-16 | 20512-52-16 |
24SFSLC-38-20TY | 24SFS38T/SC20/L | 24SLM52X2T | STC20Y | 1C978-38-20 | 20512-52-20 |
24SFSLC-38-24WY | 24SFS38W/SC24/L | 24SLM52X2W | STC24Y | 1C978-38-24 | 20512-52-24 |
24SFSLC-38-32WY | 24SFS38W/SC32/L | 24SLM52X2W | STC32Y | 1C978-38-32 | 20512-52-32 |
SAE100 R15 | |||||
重系列 | |||||
扣压接头型号 | 芯杆号 | 配套螺母 | 配套套筒 | 总成对应park号 | 总成对应eton号 |
24SFSLD-20-12WY | 24SFS20W/SD12/L | 24SLM30X2W | STD12Y | 1C979-20-12 | 20513-30-12 |
24SFSLD-20-16WY | 24SFS20W/SD16/L | 24SLM30X2W | STD16Y | 1C979-20-16 | 20513-30-16 |
24SFSLD-25-12TY | 24SFS25T/SD12/L | 24SLM36X2T | STD12Y | 1C979-25-12 | 20513-36-12 |
24SFSLD-25-16WY | 24SFS25W/SD16/L | 24SLM36X2W | STD16Y | 1C979-25-16 | 20513-36-16 |
24SFSLD-30-16TY | 24SFS30T/SD16/L | 24SLM42X2T | STD16Y | 1C979-30-16 | 20513-42-16 |
24SFSLD-30-20WY | 24SFS30W/SD20/L | 24SLM42X2W | STD20Y | 1C979-30-20 | 20513-42-20 |
24SFSLD-38-20TY | 24SFS38T/SD20/L | 24SLM52X2T | STD20Y | 1C979-38-20 | 20513-52-20 |
24SFSLD-38-24WY | 24SFS38W/SD24/L | 24SLM52X2W | STD24Y | 1C979-38-24 | 20513-52-24 |
